EDMUNDS Gages is a US company based in Connecticut. They specialize in a full range of precision production dimensional measuring gages. From air spindles, rings and masters, to fully custom designed and built fixture gages. They have instruments which are easy to use and versatile enough to be either air transducer type or straight electronic readouts. Computer gages with multiple screens and data collection are common when used with EDMUNDS more complex fixture gages and semi-automatic or machine tool compensation gages. Edmunds also builds fully automatic and robotic loaded gages typically found in end of line and final inspection production lines. If you know gage manufacturing and know what a jig bore grinder is…they have five of them in a special room.

Edmunds Download Catalog

Product Gallery

Key Product Lines

Air Spindles, Air Rings, and Masters

Edmunds manufactures standard air spindles and air rings and masters for cylindrical ID and OD measuring. They also manufacture special variations of spindles and rings with the capability of combinations of inspections. Variations include multiple diameter spindles and rings; squareness spindles and rings and custom designed and built fixtures for locating part datums for absolute or differential measurements.

Electronic Cylindrical Gages

Edmunds manufactures standard electronic bore gages and OD cylindrical measurement gages. These gages can be simple electronic spindles or special designed and build custom lvdt fixture gages with part datum locating and part like masters.

Air Gage & Electronic Instrumentation

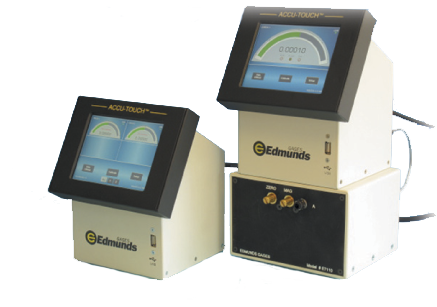

Edmunds manufactures several different types of gage instrumentation. For the NEW simple and intuitive Accu-Touch which can be configured for air or electronic gages. The traditional Trendsetter electronic column gage or the highly capable and flexible CAG Computer gage with machine feedback capability. The CAG is popular for use on multi-gage inspection benches, stand alone automatic inspection gages and machine control post process gages.

Custom Design & Build Multi Gage Bench Stations

Edmunds Gages is a full service custom design and build gage manufacturer. They have built many multi-fixture bench gage packages complete with bench, masters and custom designed and built gage fixtures. These gage bench packages will typically either have a computer gage (CAG) which will display dimension measurement data from the several fixtures; or they could use individual independent gage instruments per fixture to display the results. These gages will also have auto mastering capability to make gage verification quick and easy.
.

Custom Design & Semi Automatic- Gages

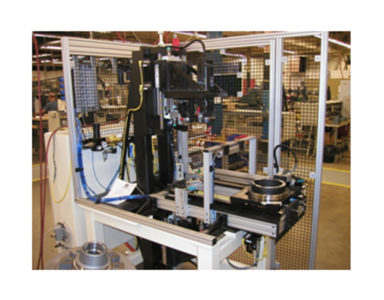

Edmunds Gages is a full service custom design and build gage manufacturer. They have built many semi-automatic gage machines. These machines will typically be built to customer specifications and in addition to the custome designed gage fixtures, they will include a machine PLC, motor drives, sensors and pneumatics to drive the required motions as a part of the inspection process. These machine are often manually loaded but automatically unloaded for error proofing; its also quite common for them to include part parking for traceability and data collecting and sending.
.

Custom Design & Build Fully Automatic- Gages

Edmunds Gages is a full service custom design and build gage manufacturer. They have built many fully automatic gage machines. These machines will typically be either an integrated metal cutting post process gage with feedback to the machine for tool correction, or they will be an end of line final inspection gage. These types of gages include automatic part transfer from an incoming tray or conveyor and will move the parts through the gage and accept or reject them automatically. These machines will often also include features like temperature comp., auto -mastering, marking and serializing and data collection.
