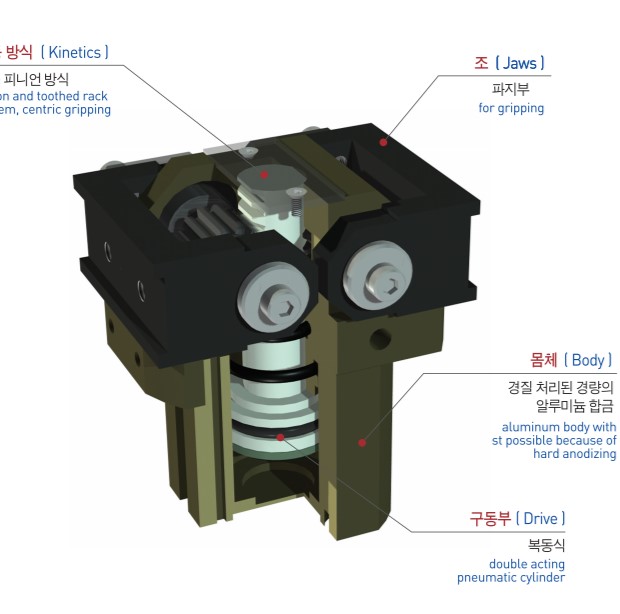

Schneider & Company - The image shows a detailed cad (computer-aided design) model of a mechanical gripper with annotations in korean describing the various components and their functions, including the kinetics, the jaws for gripping, the body, and the drive mechanism which consists of a double-acting pneumatic cylinder.

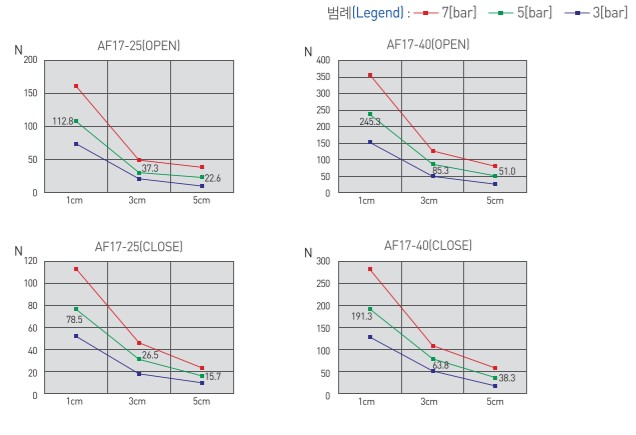

Schneider & Company - The image displays four line graphs, each representing the performance of two different valve models (af17-25[open] and af17-40[open] on the top row, and af17-25[close] and af17-40[close] on the bottom row) under three different pressure conditions (3 bar, 5 bar, and 7 bar) across a range of distances (1cm to 50cm). each graph shows how the distance affects the n value (presumably a measure of force or torque) required for operation at each of these pressures. .

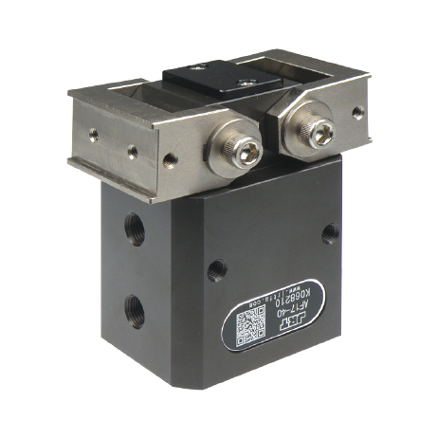

AF17 Series

  • Rack & Pinion
  • Angular Type Jaws
  • Magnetic Sensor
  • Three Mounting Faces
SKU: AF17 Categories: , ,

Description

Features

  • Rack & Pinion
  • Angular Type Jaws
  • Magnetic Sensor
  • Three Mounting Faces

Benefits

  • 180° Stroke Range
  • High Grip Forces Relative to Size

Product Downloads

2D Download3D Download
Technical Specifications

Additional information

Weight 12 kg
Stroke (Degrees)

Median Grip Force Open

,

Median Grip Force Closed

,

Accuracy (mm)

Gripper Mechanism

Pressure Range (bar)
