Description
- 2-guide + high rigidity slide unit of using self-produced cylinder
- Strengthened impact resistance through attaching air cushion
- Realized high precision through built ball bush 4 parts
- Magnetic sensor is available for end position sensing

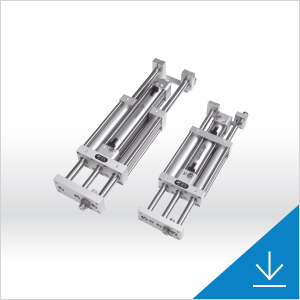

TL20 Series
- 2-guide + high rigidity slide unit of using self-produced cylinder
- Strengthened impact resistance through attaching air cushion
- Realized high precision through built ball bush 4 parts
- Magnetic sensor is available for end position sensing
Additional information
| Weight | N/A |
|---|---|
| Options | TL20-75, TL20-100, TL20-125, TL20-150, TL20-200 |
