AF26 Series

Link Lever
Magnetic Sensor

Stroke (mm)

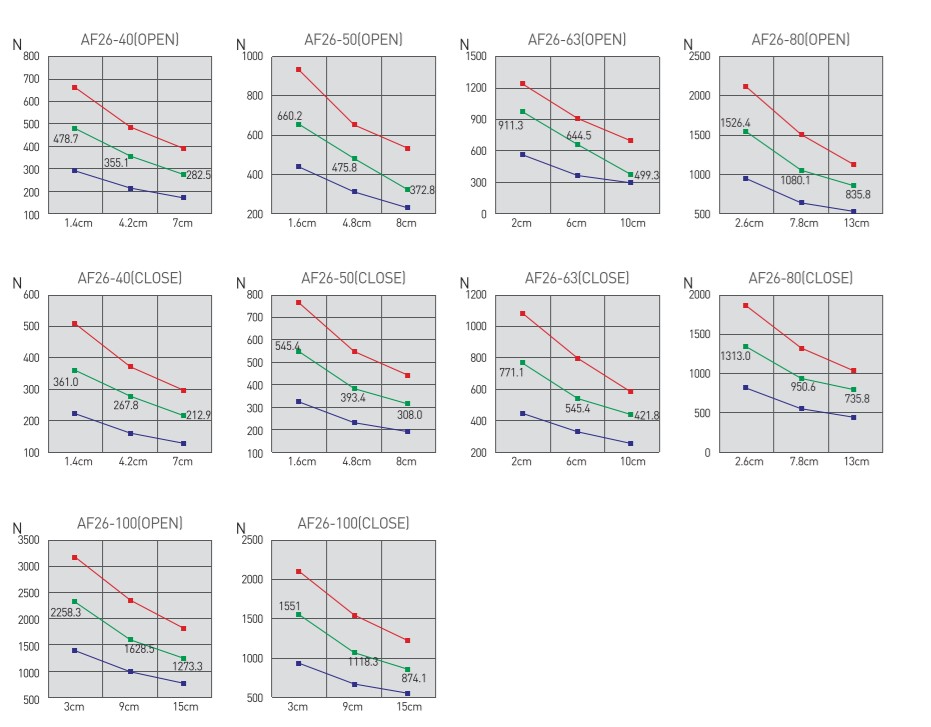

Median Grip Force Open

Median Grip Force Closed

Accuracy (mm)

Gripper Mechanism

Pressure Range (bar)

Clear

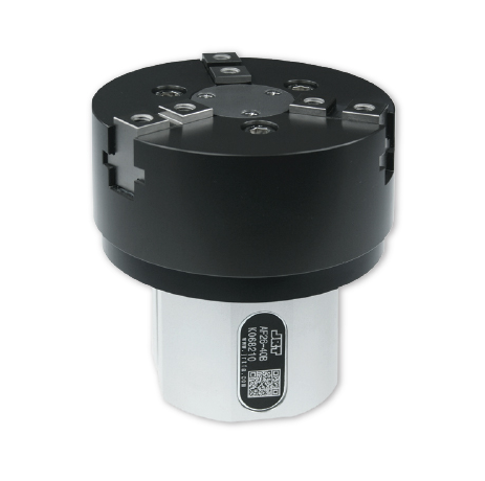

SKU: AF26 Categories: Centric Type, JRT Products, Pneumatic Grippers

Description
Additional information

Description

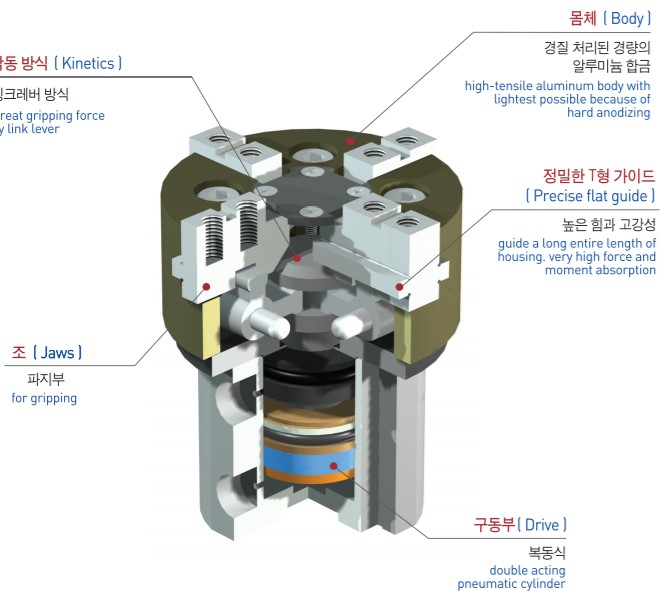

Features

Link Lever
Magnetic Sensor

Benefits

2, 3, or 4 Jaw Configurations
High Grip Force Range
Length of Possible Finger Attachment Very High
High Precision Guides

Product Downloads

2D Download 3D Download

Technical Specifications

Additional information

Weight	N/A
Stroke (mm)	12, 20, 26, 30, 42, 6, 8
Median Grip Force Open	61, 103, 158, 223, 430, 570, 775, 1325, 1975
Median Grip Force Closed	59, 95, 156, 213, 405, 560, 763, 1320, 1875
Accuracy (mm)	0.03
Gripper Mechanism	Link Lever
Pressure Range (bar)	3-7
